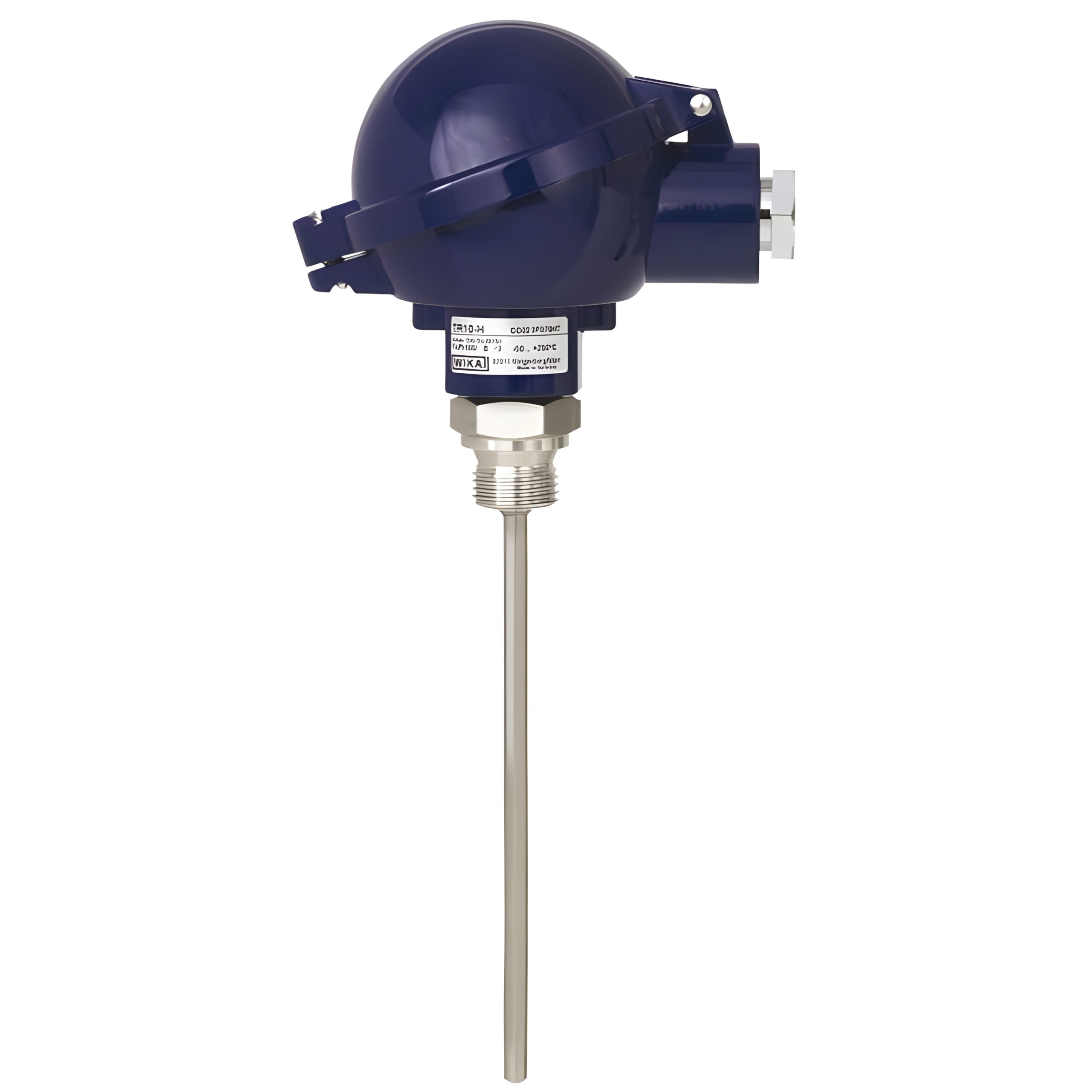

Thermocouples are temperature sensors that generate a voltage directly dependent on temperature. Compared to resistance thermometers, they are particularly suited for high temperatures up to 1,700 °C. Instrument designs from mineral-insulated sheathed cable are very resistant against extremely high vibration loads (depending on instrument model, sensor element and wetted materials).
Thermocouples
| Thermocouples | |
| Measuring Element | •Thermocouple per IEC 60584-1 or ASTM E230 •Types K, J, E, N, T, S, R, B |
| Temperature Range | •0 … 400 °C / +32 … 752 °F •0 … 600 °C / +32 … 1,112 °F •0 … 750 °C / +32 … 1,382 °F •0 … 1200 °C / +32 … 2,192 °F •0 … 1700 °C / +32 … 3,092 °F •Others |
| Output Signal | •Thermocouple •4 … 20 mA •HART® (4 … 20 mA) •PROFIBUS® PA •FOUNDATION™ Fieldbus |
| Process Connection | •Various process connections |
